| Dimensions | L 20.1 x W 12.2 x H 17.4 (cm) |
|---|
| KEY FEATURES | |
| HARDWARE CONFIGURATIONS | |
| Processor | Dual-Core 880MHz |
| ROM | 16MB |
| Product memory | 128MB DDR3 |
| 2.4GHz Wi-Fi | 2×2 (Supports IEEE 802.11n Protocol, up to maximum speed of 300 Mbps |
| 5GHz Wi-Fi | 2×2 (Supports IEEE 802.11ac protocol, up to a maximum Speed of 867Mbps |
| Antennas | 4 External Omni-Directional high performance antennas |
| Cooling | Passive Cooling |

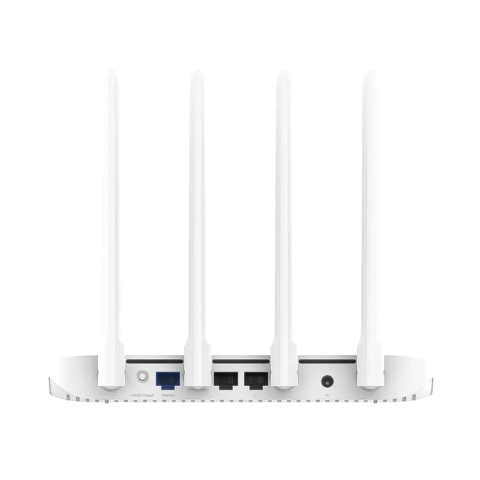

| Product Ports | 2x 10 | 100 | 1000M Self Adaptive LAN Port (Auto MDI/MDIX, 1x 10 | 100 | 1000M Selfl-adaptive WAN port (Auto MDI/MDIX) |
| LED Indicator | x2 |
| System Reset Button | x1 |
| Power supply Port | x1 |
| Protocol Standards | IEEE 802.11a/b/g/n/ac, IEEE 802.3 3/3u/3ab |
| WIRELESS SPECIFICATIONS | |
| Dual Band | 2.4GHz | 5Ghz |
| SOFTWARE PARAMETERS | |
| Operating System | open WRT widely customisable intelligent router operating system MiWiFi ROM |
| Wireless Security | WP-PSK / WPA-PSK2 Envryption , wireless access control(black and white list), SSID Hiding, Smart Anti-hacking protection |
| Manage Applications | Support Web, Android, iOS |
| OPERATING ENVIRONMENT | |
| Operating Environment | 0°C–40°C |
| Operating Humidity | 10%–90% RH (non-condensing) |
| Storage Temperature | -40°C–70°C |
| Storage Temperature | 5%–90% RH (non-condensing) |
| 1 Year Warranty on Parts and Labor |
